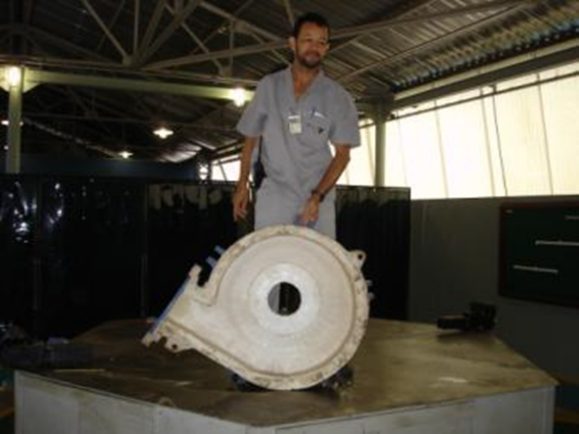

CETARCH technical ceramics factory in Brazil — large pump lined with wear-resistant ceramic

In-house manufacturing · Criciúma/SCFROM NANOPARTICLE TO FINISHED PART

01 / Company

Technical and architectural ceramics built for industry's harshest environments

CETARCH designs and manufactures components in hard ceramic, sintered at high temperature, with high resistance to abrasion and chemical attack. Our parts line and protect machines and equipment where wear is constant — reducing downtime, maintenance and total cost of operation.

Based in Criciúma, Santa Catarina (Brazil), we combine materials engineering, precision manufacturing and close technical support to deliver tailor-made solutions, from specification to installation.

// 01Materials engineering

// 02Precision manufacturing

// 03Custom-engineered parts

// 04Close technical support

02 / Technology Why technical ceramics

Performance where metal fails

Sintered at temperatures above 1,500 °C, our ceramic forms a dense, chemically stable microstructure. The result is a material that withstands what destroys steel: continuous abrasion, corrosion and heat.

Extreme hardness

Near-diamond hardness (9 Mohs), often far above hardened steel, delivering surfaces that virtually never wear.

Abrasion resistance

Withstands continuous flow of slurries, powders and abrasive particles, multiplying component life by up to 10× versus Ni-Hard.

Chemical inertness

Inert to aggressive acids, alkalis and solvents, with no corrosion and no contamination of the processed product.

Thermal stability

Retains mechanical properties at high service temperatures, with no deformation or loss of structural integrity.

Dimensional precision

Parts ground to tight tolerances, ensuring perfect fit and predictable performance in every assembly.

Lower total cost

Fewer stoppages, fewer replacements, less maintenance. Investing in ceramics pays off in uptime and productivity.

Low roughness

A smooth surface that cuts friction and material build-up, improving flow and process efficiency.

Applied engineering

Every solution starts from an analysis of the client's process — geometry, flow and wear — to deliver the ideal part.

Vertically integrated manufacturing

From nanoparticle to sintered part — all in-house

We control the entire production chain: we make our own nanoparticles, design and build the kilns, mixers and mills, and develop the refractories. This full control guarantees purity, repeatability and the freedom to engineer custom formulations.

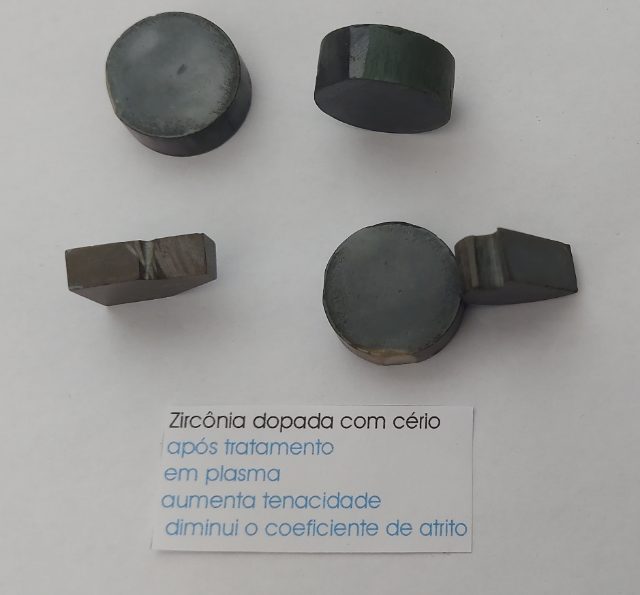

Doped zirconia nanoparticles — CETARCH advanced ceramic materials engineering

// 01

In-house nanoparticles

Dry-process production of alumina, zirconia, rare-earth and other oxide nanoparticles, contamination-free — built into every one of our formulations.

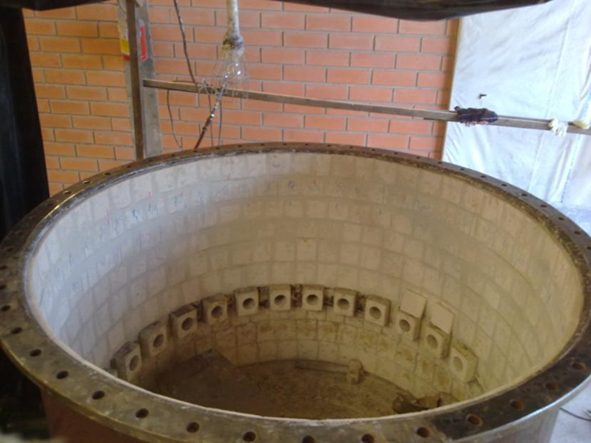

$Technical ceramic sintering kiln with in-house refractories$

// 02

Kilns up to 1750 °C

Kilns, dryers and mills designed and built by CETARCH. Sintering up to 1750 °C, virtually free of glassy phase — maximum hardness and strength.

Plasma surface treatment of technical ceramic parts — CETARCH/UFSC research

// 03

Research & plasma

Pressing, extrusion and slip casting, plus plasma treatment and laser deposition to alter the properties of already-sintered parts.

03 / Products Component line

Ceramic components for every wear point

From specification to finished part — a complete line of hard-ceramic components to line, channel and protect your systems.

P-01

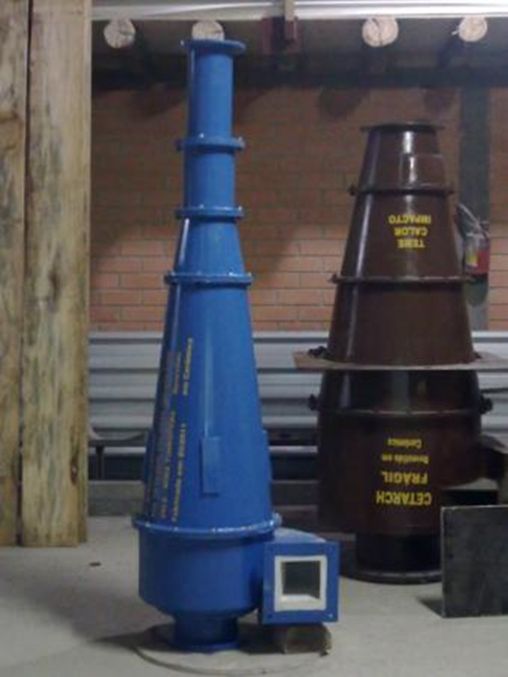

Cyclones

Ceramic lining for cyclones and hydrocyclones, withstanding the intense abrasion of particle separation.

Learn more →

P-02

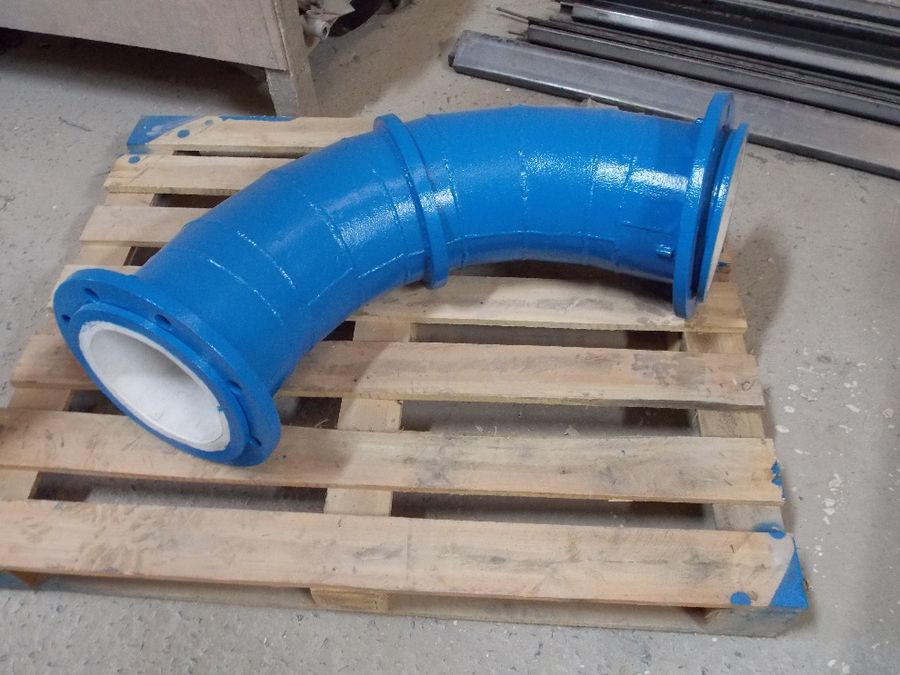

Pipes and elbows lined with CT CEDUR wear-resistant ceramic

Pipes & elbows

Ceramic-lined pipes, elbows and flanges for pneumatic and hydraulic conveying of abrasive materials — pipe and flange in matching sizes.

Learn more →

P-03

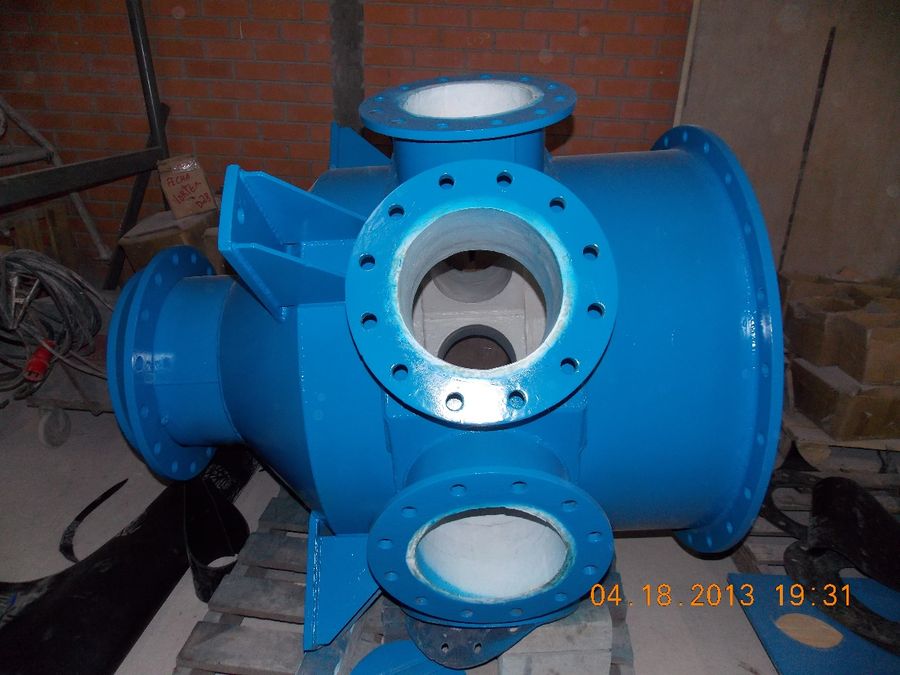

Distributors

Solid-ceramic multi-outlet distributors — round internal profile, no weak points at the joints, reinforced where wear is worst.

Learn more →

P-04

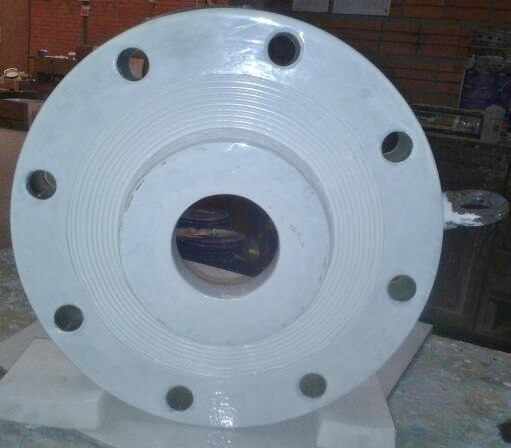

Orifice plates

Ceramic orifice plates and valves for precise flow and pressure control, with no erosion of the calibrated bore.

Learn more →

P-05

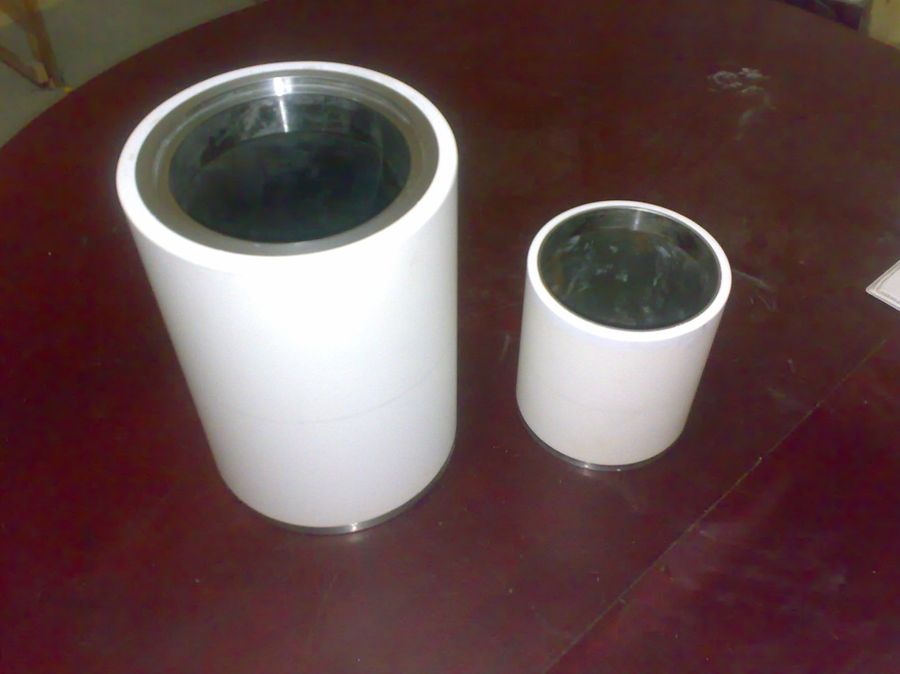

Bushings

Ceramic bushings and sleeves for bearings, shafts and pumps — friction points that demand maximum wear resistance.

Learn more →

P-06

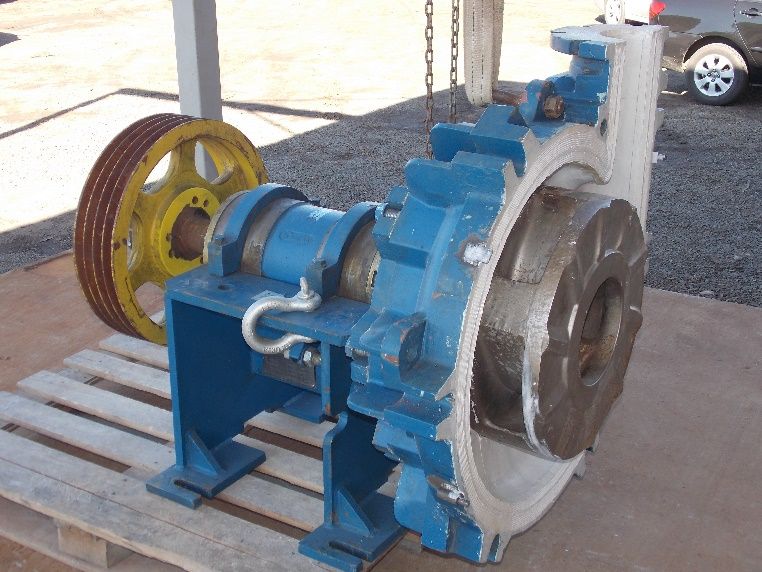

Pump lined with solid wear-resistant CT CEDUR ceramic

Lined pumps

Slurry-pump casings and components lined in solid ceramic, protecting impellers and volutes against erosion.

Learn more →

P-07

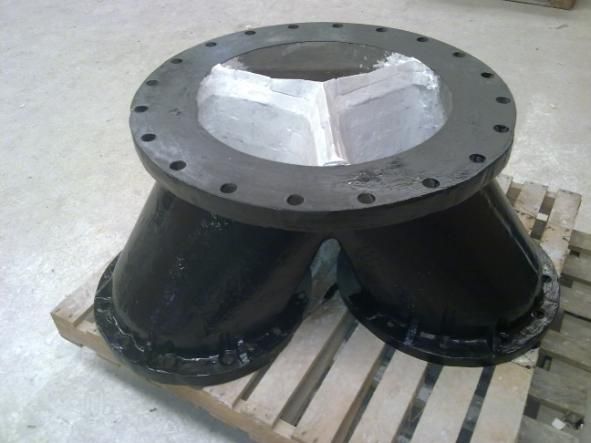

T and Y branches lined with wear-resistant ceramic

T / Y branches

Lined "T" and "Y" branches — rectangular box outside, round profile inside, with no weak points at the joints.

Learn more →

P-08

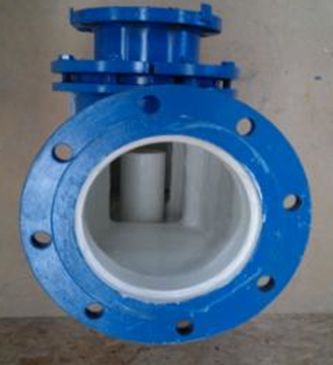

Valves and splitters lined with CT CEDUR technical ceramic

Valves & splitters

Lined butterfly valves, splitters and distributors, built to any size on demand (e.g. 14¨ inlet / 8¨ outlet).

Learn more →

P-09

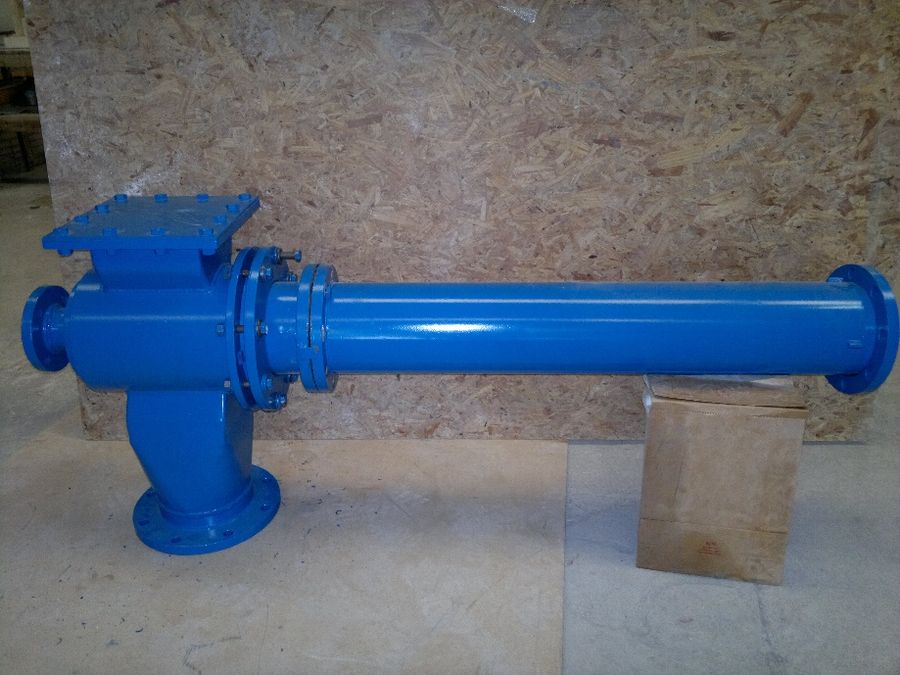

Injector and rotary valves in technical ceramic

Injector & rotary valves

Ceramic injector, rotary and curved valves for dosing and directing highly abrasive flows.

Learn more →

P-10

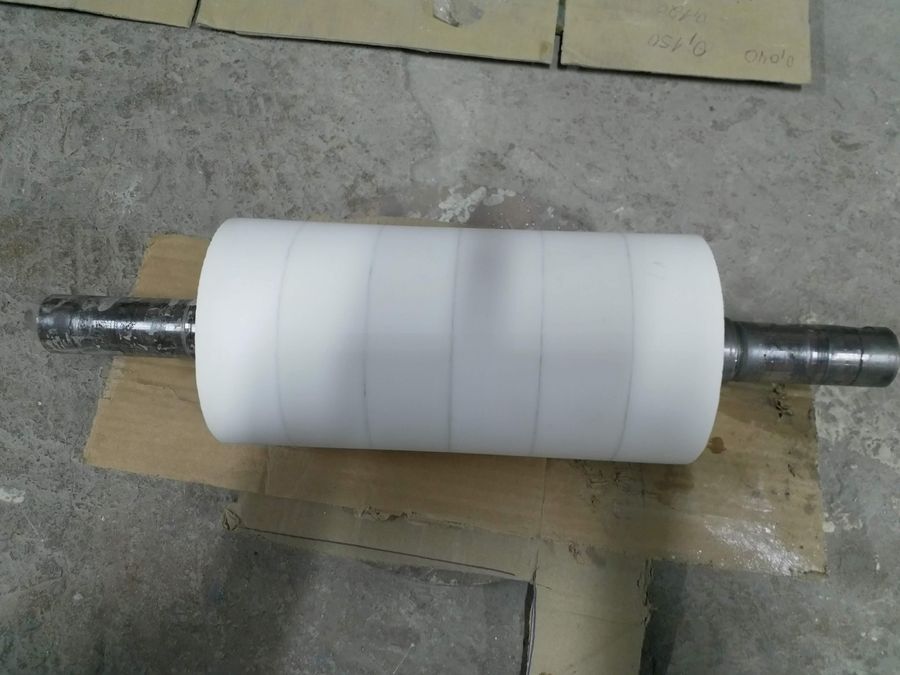

Technical ceramic roller or cylinder for grinding

Grinding rollers

Ceramic grinding rollers and cylinders, plus insulating bases for electrostatic filters — high hardness where wear never stops.

Learn more →

P-11

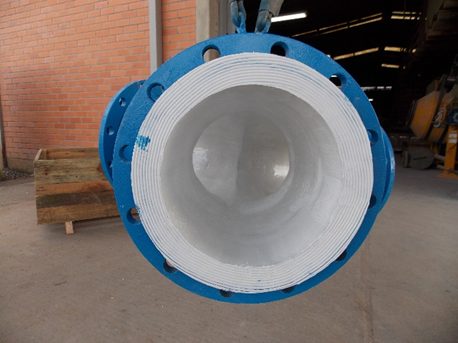

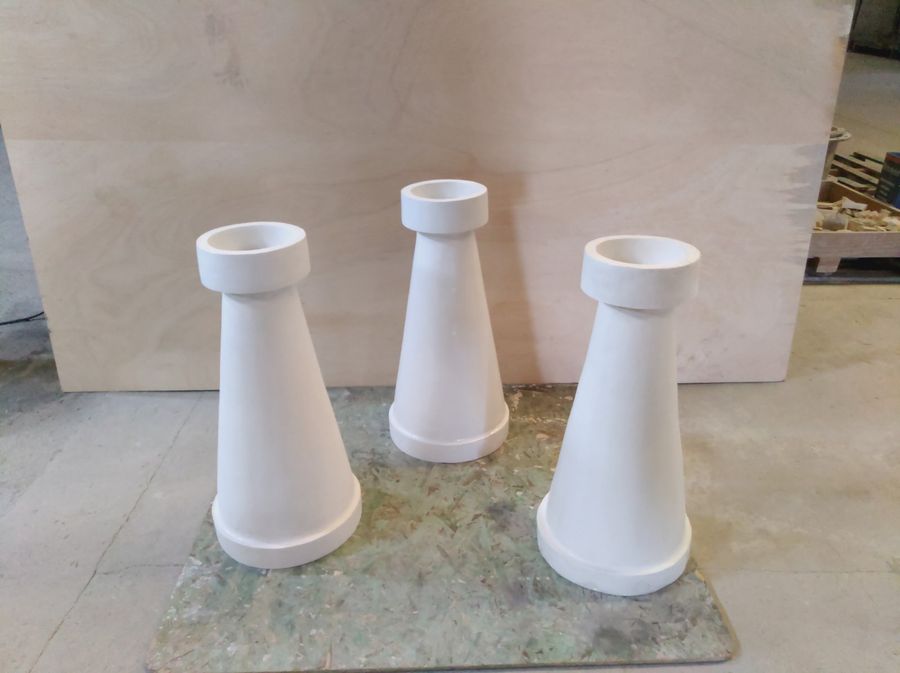

Reducers and cones in CT CEDUR wear-resistant ceramic

Reducers & cones

Ceramic reducers, apexes and cones that match the original equipment geometry, with no flow restriction or process change.

Learn more →

P-∞

Custom parts

Have a specific wear point? We develop the ideal geometry for your process.

Talk to engineering →

// Full catalog of applications

Chutes & launders Micro-cyclones Cyclone tips Pipe lining Lined bushings Fan blade lining Ceramic-in-rubber Burner blocks Special fillers & linings

04 / Materials CT CEDUR line

Technical aluminas for every level of demand

From CT CEDUR 90 to 99HH, formulations with rising alumina and nanoparticle content — hardness, density and chemical inertness tuned to your process. Rare-earth (TR) compositions on demand.

Material	Al₂O₃ content	Density	Hardness HV	Flexural	Water abs.	Best for
CT CEDUR 90Standard · lining	90% a 99,5%	3,7 a 3,85 g/cm³	> 1300 HV	380 MPa	< 0,05%	High-hardness, chemical-attack lining
CT CEDUR 94HHHigh abrasion	95,8–96,3%	3,70–3,72 g/cm³	1450–1500 HV	380 MPa	< 0,4%	Excellent abrasion resistance
CT CEDUR 96HHAbrasion + impact	95,8–96,3%	3,73–3,76 g/cm³	1500–1600 HV	380 MPa	< 0,2%	Severe abrasion and impact
CT CEDUR 99HHHigh purity	99,5–99,7%	3,78–3,82 g/cm³	1550–1600 HV	380 MPa	< 0,2%	Abrasion, impact, chemistry and thin/complex parts

// Sintered > 1,600 °C, virtually free of glassy phase. Typical test values — custom compositions available, including doped zirconia and rare earths.

05 / Applications Industries served

Where wear is the enemy, ceramic is the answer

Mining

slurry · crushing · classification

Cement

grinding · conveying · separation

Steel

sinter · pelletizing · pig iron

Energy

thermal plants · coal · ash

Chemical

acids · alkalis · abrasives

Ceramics & Glass

atomizing · glazing · milling

Pulp & Paper

pulp · bleaching · fillers

Agribusiness

grain · fertilizers · feed

// Solutions delivered in the field

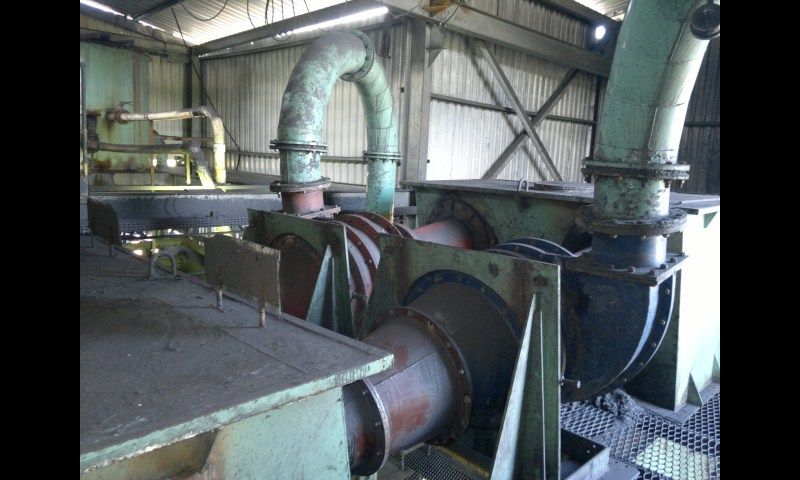

Wear-resistant ceramic-lined piping installed in an industrial plant

Piping · MiningCT CEDUR-lined lines in operation

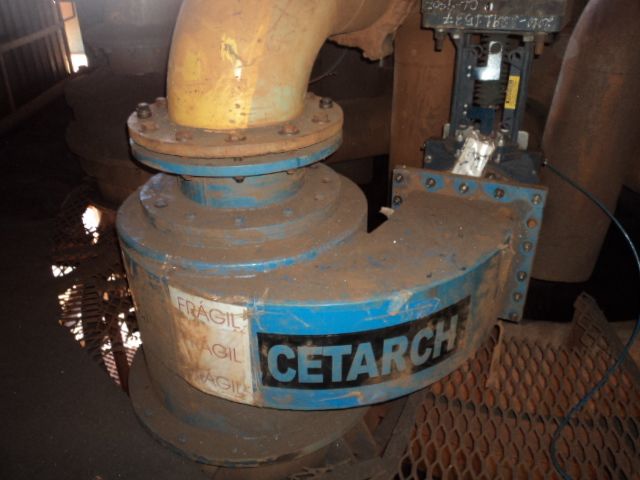

Ceramic-lined valve installed in the field — CETARCH

Valve · ValeField-installed lined component

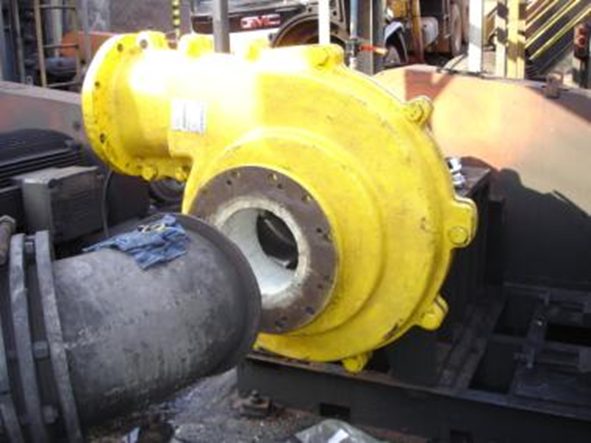

Slurry pump lined with wear-resistant ceramic, installed

Slurry pumpCasing protected against erosion

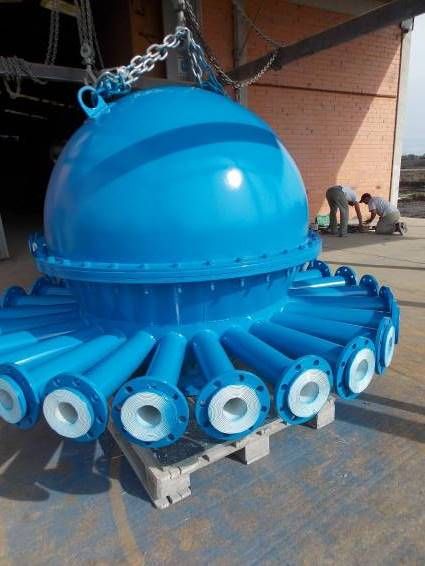

Solid-ceramic dome distributor with multiple outlets

DistributorSolid-ceramic multi-outlet dome

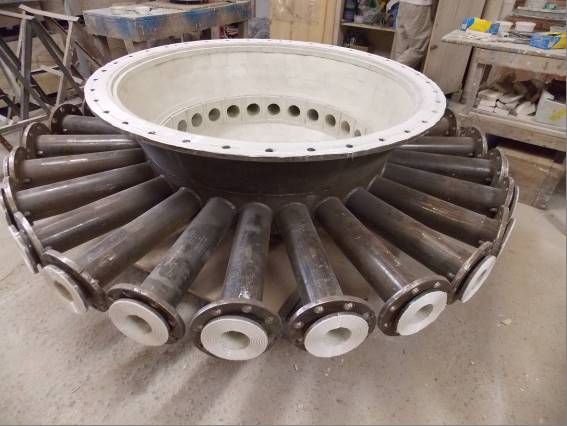

Ring ceramic distributor with multiple outlets

Ring distributorOutlets in solid ceramic

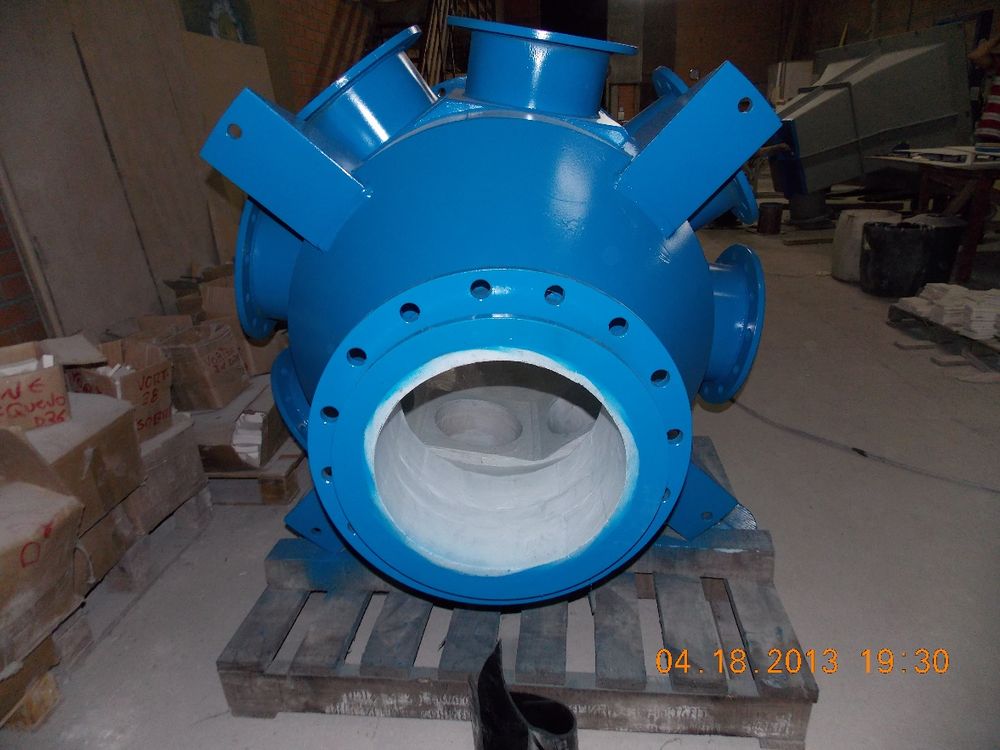

Star ceramic flow splitter with multiple outlets

Flow splitterMultiple outlets with no weak points

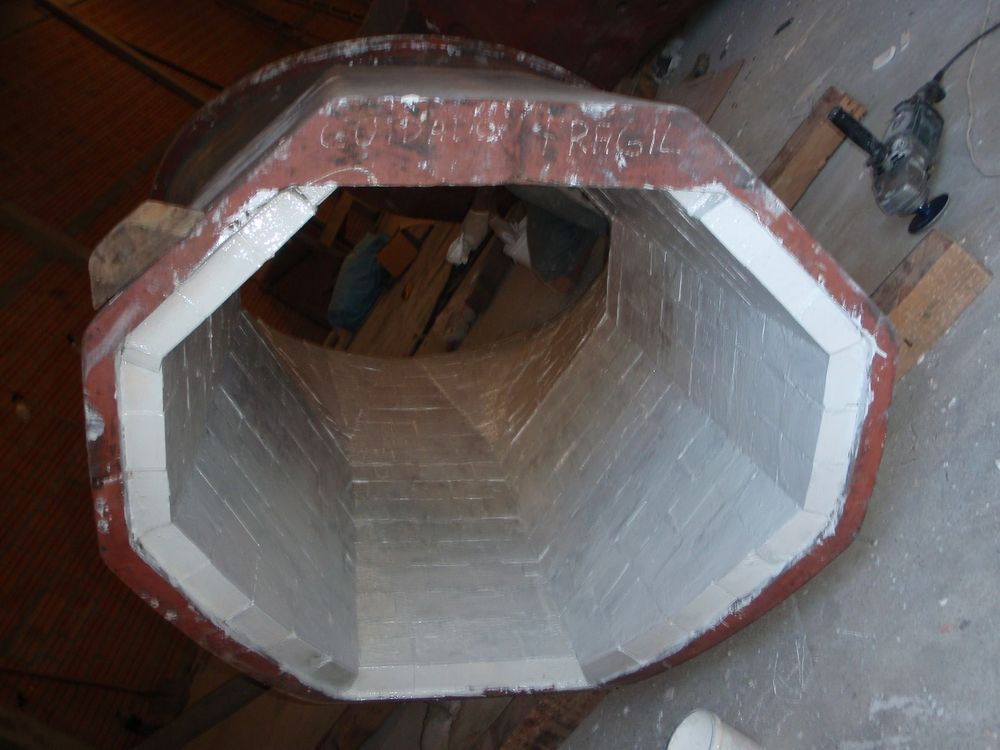

Interior of rectangular duct lined with wear-resistant ceramic

Lined duct100% ceramic internal protection

06 / Process From idea to part

How we develop your solution

Diagnosis

We analyze the wear point, the processed material, the flow and the operating conditions.

Engineering

We design the geometry and specify the ideal ceramic composition for the challenge.

Manufacturing

Forming, high-temperature sintering and precision grinding of the parts.

Application

Delivery, installation support and follow-up of field performance.
